MTP patch cords are designed for high-density cabling, saving space and making them easy to manage. Precision MT ferrules and components are used to ensure higher precision during optical fiber docking. Complying with MPO standards while providing better performance levels, you can choose 8, 12, 16 or 24 cores.IEC 61754-7 Compliant,EIA/TIA-604-5 Compliant.

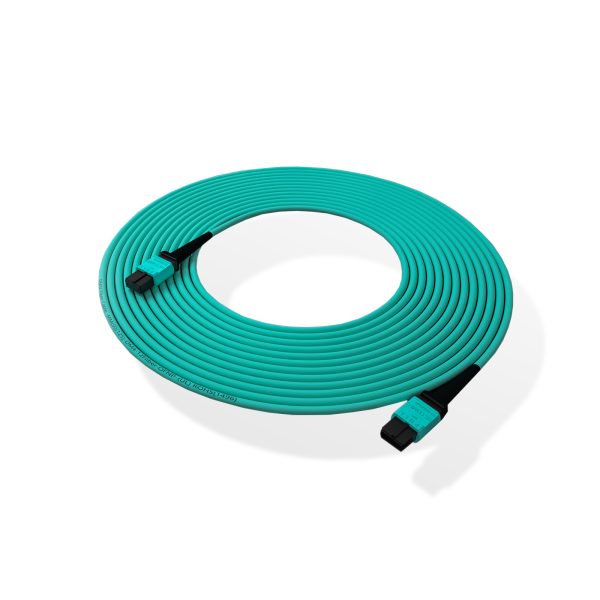

MTP Patch Cord
| Number of cores : | 8/12/16/24F |
| Grinding method : | SM: UPC/APC ; MM: UPC/PC |
| Cable outer cover : | PVC/LSZH/OFNP |
| Fiber type : | G657A1/OM1/OM2/OM3/OM4/OM5 |
| Wave length : | SM: 1310/1550nm ; MM: 850/1300nm |
| Cable diameter : | 2.0/3.0mm |
| Operating temperature : | -25°C~ +70°C |
| Storage temperature : | -40°C~ +85°C |
Connectivity Solutions
Features
● Optimize cable management to speed deployment and increase flexibility and manageability, reducing installation costs
● Suitable for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 data center high-density applications
● MTP connectors are fully compliant with MPO standards and provide higher performance levels compared to universal MPO connectors
